Marine GPS Plotter
Marine GPS Plotter - Image 2
Marine GPS Plotter - Image 3

Marine GPS Plotter

  • Item Code:
  • cb2ea6e85b3c
  • Brand:
  • Marinelite
  • Condition:

$950.00

Send Enquiry

Marine automatic identification system 19 inch Marine GPS Plotter for fishing boat

nProduct Description of the Marine GPS Plotter
n

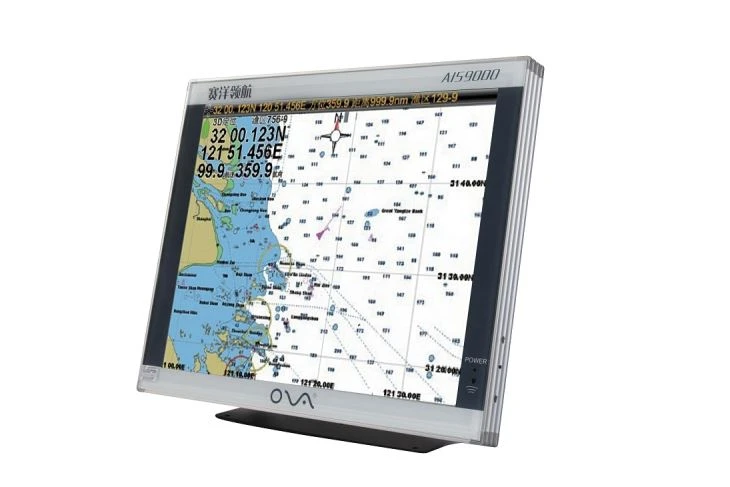

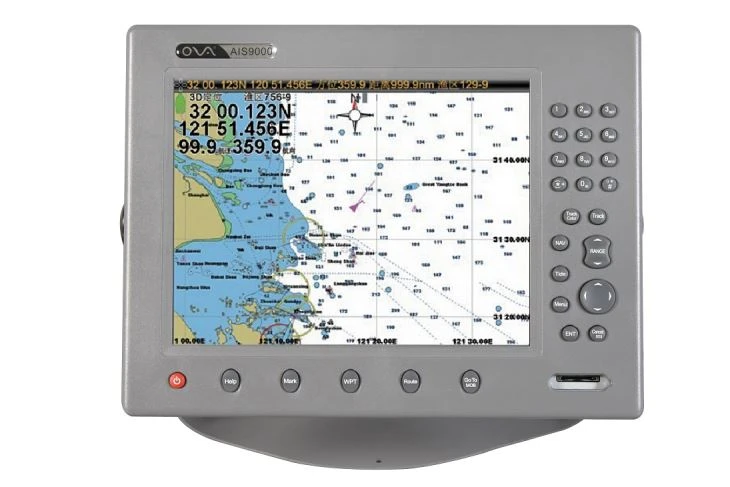

nMarine GPS plotter AIS9000-L190 19″  with built-in AIS is supplied by Saiyang.
n
nWe are manufacturer and developed in AIS marine navigation for 14 years.
n
nProduct Specification of the Marine GPS Plotter
n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

Model AIS9000-L190
Display Size 19″
Resolution 1024×768
ExternalDimension 442mmx362mmx100mm
Display Mode TFT LCD COLOR Display
Operating Mode Infrared remote control
Language Simple Chinese, English, Traditional Chinese
Voltage Range 11~35V DC
Power High performance, full isolated PWM control of power supply
Power Dissipation ≤30W
Safe Distance of Compass ≥1.5m

n
n
n
n
n
n
n
n
n
nAIS Function		 TX Channel 1 ch
RX Channel 2 ch
RF Out Power 2W
Receive Frequency 156.025~162.025MHz
Default Channel CH2087,CH2088
Bandwidth 25KHz
Modulation Mode GMSK
Receive
n
nSensitivity		 Superior to-107dBm
TX Channel 87B/161.975MHz
RX Channel 88B/162.025MHz

n
nGPS Receiver		 Adopt high speed stable technology
GPS positioning accuracy:≤15m, 95% accuracy
Positioning time:cold start 45s, warm start 15s

n
n
n
nNavigation Performance		 Waypoints:6000 points
Marks:5000 points
Route:200 routes,each route contains 48 waypoints
Track:≥200 routes
Include the tide and compass
Intelligent collision avoidance

n
n
n
nInterface		 1.GPS output:RS-422, NMEA0183, 4800bps
2.AIS input & output:RS-422, NMEA0183, 38400bps
3.Sonar input & output:RS-422, NMEA0183, 115200bps
4.GPS Antenna Interface:BNC base, impedence 50Ω
5.VHF Antenna Interface:UHF base, impedence 50Ω
6.Powerinterface: 24V DC(11~35V DC)
Environment Temperature -15℃~50℃
Protection Level IP44

n
nStandard Annex
n
n 		 1. GPS Antenna
2. Power Line
3. Safety Fuse, Locking Screws
4. Manual, Certificate, Warranty Card

n

n
nPacking&Shipping
n
n●Weight:8.8kg
n
n●Port:Shanghai/Nantong
n
n●Lead Time :Shipped in 7 days after payment
n
n
n
n
nOur Service
n
n
nTechnical Support
n
nOur company has three senior technicians and twelve professionals with high technological level, abundant specialized research practice experience and strong developing abilities. Meanwhile, our company has cooperated with some institutes of higher education and science & technology institutes to ensure the sustaining development of scientific research and development work.
n
n
n
n
nFAQ of the Marine GPS Plotter
