$1,400.00
nProduct Description of the chartplotter for sale
n

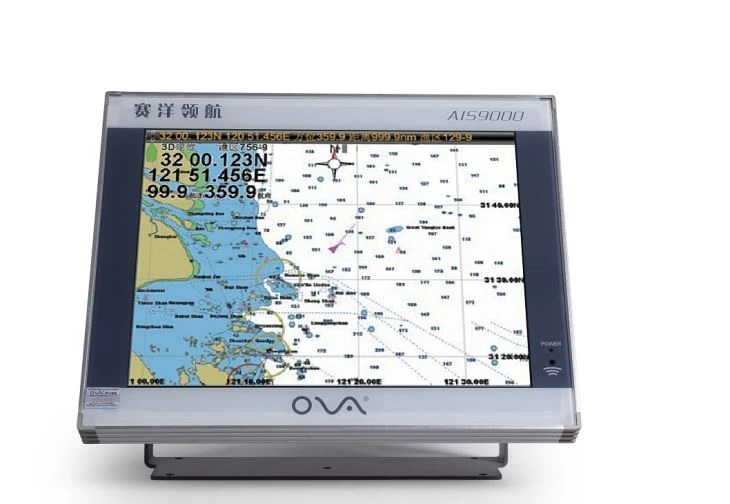

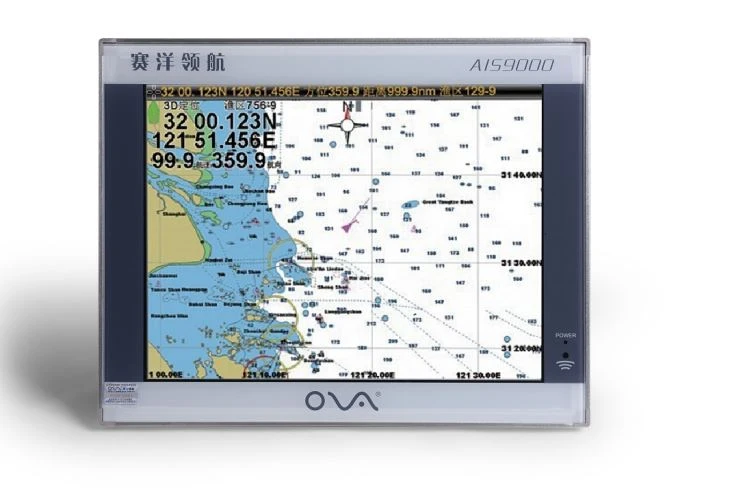

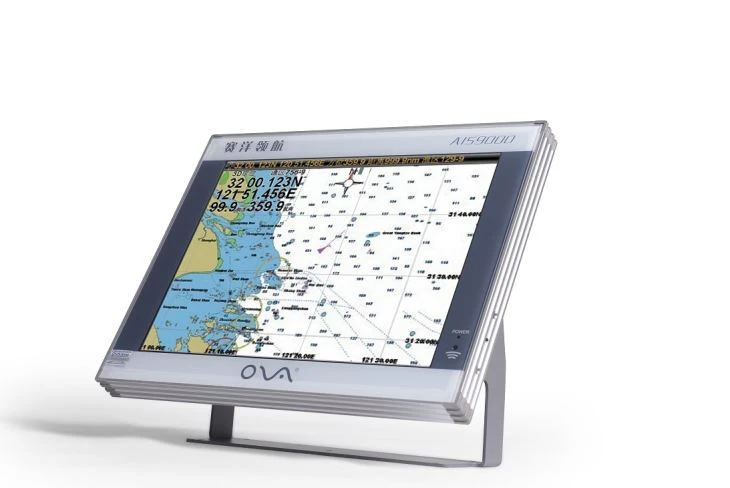

nGPS chartplotter with 15inch display marine plotter is supplied by Saiyang.
n
nThe GPS chartplotter adopts advanced technology of high stable navigational speed and course.
n
nProduct Function of the chartplotter for sale
n
n●Powerful and advanced technology
n
n●Flexible and convenient operations
n
n●External and quick update
n
n●Certified with authoritativa quality system
n
n●Industrial and high quality material
n
n●Exquisite apperance,convenient and practial
n
nProduct Specification of the chartplotter for sale
n
n
n
| Model | AIS9000-15 |
| Voltage | DC 24V (11~35V) |
| Power Consumption | ≤20W |
| Power | High Performance, full isolated, PWM control of power supply |
| Installation | Bracket and Embedded |
| Display Unit | |
| Type | 15” TFT LCD |
| Resolution | 1024×768 |
| Language | Simplified Chinese, Traditional Chinese, English |
| Plotter Characteristics | |
| Data Storage | Suspension data: Information of ship’s latitude and longitude, fish zone, speed, course; Navigation information of waypoints and routes; Time, date and so on |
| Other Functions | Tide and Compass Pages; AIS Display and Alarm, AIS Message, Vessel Management(if input AIS) |
| GNSS Characteristics (Customized GPS+Beidou) | |
| Receive Type | GPS/ Glonass / Galineo / Beidou Support: WAAS / EGNOS / MSAS / GAGAN |
| Receive Channel | GPS: 1575.42MHz(L1) Beidou: 1561.098MHz(L) |
| Acquisition Time | Cold Start: 45s Hot Start: 15s |
| Accuracy | GPS:<15m(95%) Beidou: Horizontal 25m (95%) Vertical: 30m (95%) |
| Interface | |
| Input / Output | GPS/Beidou(GGA,GLL,GSA.GSV,RMC,VTG,AIS(VDM)) |
| SD Card | Update software and chart, import and export data |
| Performance | |
| Frequency | AIS 1: 87B/161.975MHz n nAIS 2: 88B/162.025MHz |
| Bandwidth | 25KHz |
| Output Power | 2W |
| Modulation | GMSK |
n
n
n
n
n
nFAQ of the chartplotter for sale
n
nQ: Where is your company located? How can I visit it?
nA: Our company is located in Nantong, which is about two hours from Shanghai and half an hour by car from Nantong Airport.
n
n
nQ: How can I get the sample?
nA: Samples could be sent within 3-5 days if there is in stock. Generally, sample is not free.
n
nQ: What’s the lead time?
nA:If we have stocks of the item you need, we can send goods to you within 3-5 working days after 100% payment into our bank account. If we don’t have enough stocks, different products will take different days. Generally, it need around 30-35 days.
n
nQ: How does your factory control product quality?
nA: ISO9001 Certificated, independent quality control team with inspectors in our factory.
n
nQ: What is your Minimum Order Quantity?
nA: We sell you at least 10pcs for each item in normal order, but we also accept the sample order.
n
nQ: What’s about shipping?
nA: Small order can be shipped by air and large quantities can be shipped by sea, no matter your assigned agent or ours, Our best advantage is that we’re located in Nantong that is close to Shanghai and Nantong Port.
n
n
nQ: What’s your agency/distributor policy?
nA: We have too many different policies according to target markets, so please send email for detailed discussion or talk face to face.
