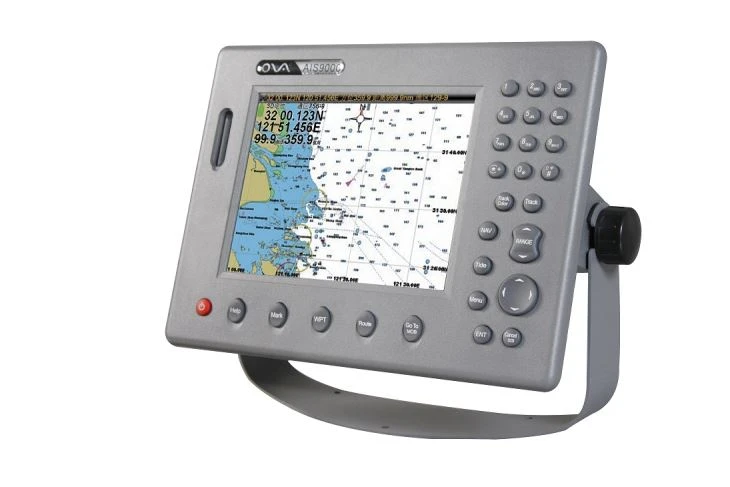

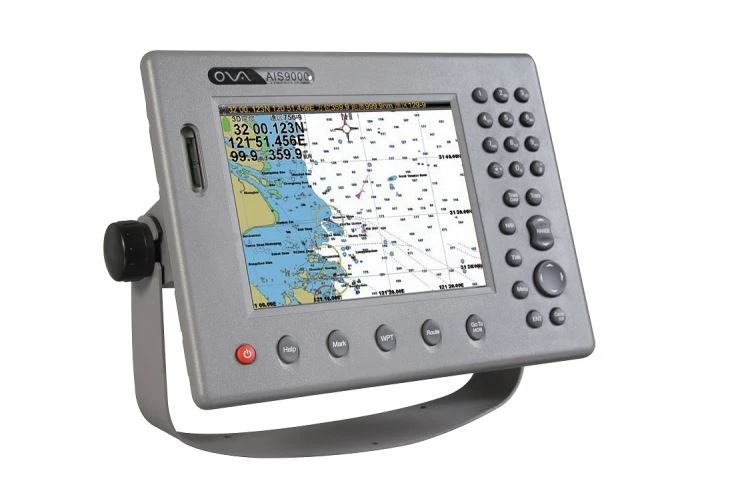

marine gps ais

$950.00

Marine gps ais Approved by the China Classification Society (CCS) is supplied by Saiyang.

nProduct Description of the marine gps ais
n
nMarine Gps Ais – China Manufacturers, Factory, Suppliers.
n
nUnder the GPS positioning function,you can see the navigation trajectory,own ship position and port of destination.
n
nProduct Function of the marine gps ais
n
n●Powerful and advanced technology
n
n●Flexible and convenient operations
n
n●External and quick update
n
n●Certified with authoritativa quality system
n
n●Industrial and high quality material
n
n●Exquisite apperance,convenient and practial
n
n●More detailed canal diagram, more efficient chart refresh
n
n●8-inch 800X600 high-resolution display
n
n●Approved by The China Classification Society (CCS), with CCS Certification.
n
n●Large-capacity memory; comprehensive Asia charts; large storage capacity for waypoints, markers,
n
nand plan routes.
n
nProduct Specification of the marine gps ais
n

Model	AIS9000-08
Power Supply	DC 24V (11~35V)
Power	High-performance, full isolated, PWM control of power supply
Installation	Bracket or Embedded
Display Unit
Frequency Range	156.025 MHz~162.025 MHz
Channel Bandwidth	25KHz
Modulation	GMSK
Number of Transmitters	1
AIS Channel 1	CH 87B (161.975MHz)
AIS Channel 2	CH 88B(162.025MHz)
Tx Power Output	2 Watt(33dBm ±1.5dBm)
Rx Sensitivity	<-107 dBm @ 20% PER
Rx Message	AIS Class A & B messages
GPS Receiver(Built-in)
Receiving Channels	50 channels(Customizable GPS+Beidou)
Acquisition Time	Cold Start: 45s Hot Start: 15s
Accuracy	<15m (95%)
LED INDICATION
Power(Red)	System Power on/off
Error(Yellow)	Receiving or transmitting error
TX(Red)	Transmitting AIS Data
RX1(Green)	Receiving AIS channel 1 data
RX2(Green)	Receiving AIS channel 2 data
GPS(Green)	Receiving GPS data
Interface
GPS Antenna Connector	BNC
VHF Antenna Connector	NS-KYA3
NMEA0183(RS-422)	1(38400bps)
Environment
Input/Output	-15°C~55°C(+5°F~+130°F)
Waterproof	IP44
Applicable Standards
IEC 62287-1 Ed.2, 2010 IEC 61108-1 Ed.1, 2003 IEC 61162-1 Ed. 3, 2007
IEC 60945 Ed. 4, 2002 IEC 61162-2 Ed. 1, 1998 ITU-R M.1371-4, 2010

n
n
n
n
n
n
n
n
n
n
nFAQ of the marine gps ais
n
nQ: Where is your company located? How can I visit it?
nA: Our company is located in Nantong, which is about two hours from Shanghai and half an hour by car from Nantong Airport.
n
n
nQ: How can I get the sample?
nA: Samples could be sent within 3-5 days if there is in stock. Generally, sample is not free.
n
nQ: What’s the lead time?
nA:If we have stocks of the item you need, we can send goods to you within 3-5 working days after 100% payment into our bank account. If we don’t have enough stocks, different products will take different days. Generally, it need around 30-35 days.
n
nQ: How does your factory control product quality?
nA: ISO9001 Certificated, independent quality control team with inspectors in our factory.
n
nQ: What is your Minimum Order Quantity?
nA: We sell you at least 10pcs for each item in normal order, but we also accept the sample order.
n
nQ: What’s about shipping?
nA: Small order can be shipped by air and large quantities can be shipped by sea, no matter your assigned agent or ours, Our best advantage is that we’re located in Nantong that is close to Shanghai and Nantong Port.
n
n
nQ: What’s your agency/distributor policy?
nA: We have too many different policies according to target markets, so please send email for detailed discussion or talk face to face.
