Ais Transponder Wifi

$2,800.00

High Performance Ais Transponder Wifi are the most advanced collision avoidance systems available.

n

1.Product Description of the Ais Transponder Wifi

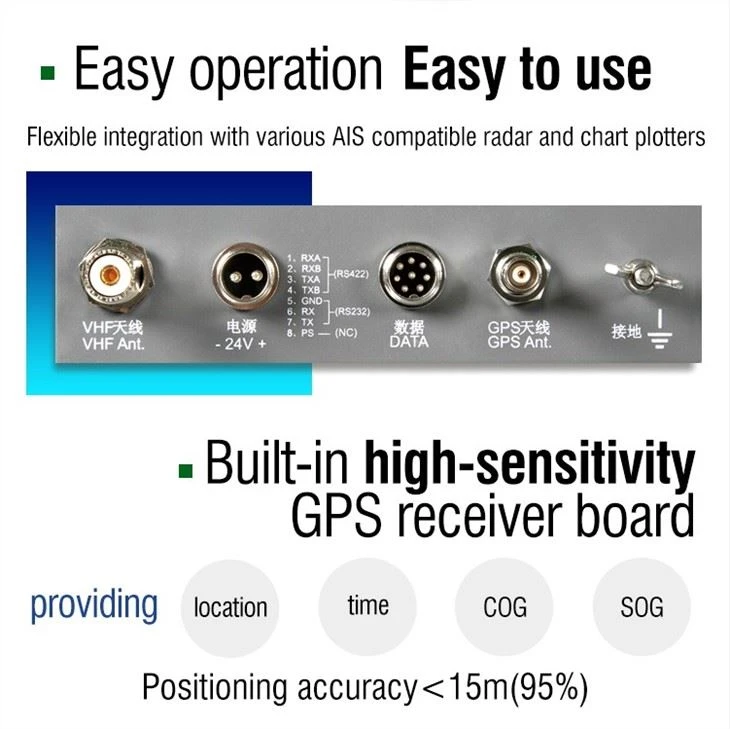

nAIS transponder wifi marine transponder AIS9000 is built-in high sensitivity GPS receiver board with accurate positioning supplied by OVA.
n
nAIS data or a warning alarm gives you time to alter course and avoid collision.
n
nAIS transponder wifi can transmitter and receive the information and you can see the receiving information by connecting PC.
n
nCustomizable wifi, Bluetooth, or Network interface.
n
nproduct-1-1
n

n

Product Feature

nproduct-1-1
n
n
n
n
n

4.Product details of the Ais Transponder Wifi

nproduct-1-1
n
nproduct-1-1
n
nproduct-1-1
n
nproduct-1-1
n
nAIS9000
n
n
n
n
n

5.Product Qualificationof the Ais Transponder Wifi

nOVA ais transponder wifi, Excellent RF performance, stable and reliable emission;
n
nHigh-grade protection standard Enclosure, waterproof, anti-salt, anti-sunshine, anti-immersion, ensure the equipment can work in harsh environment
n
nProducts have passed ISO9001 quality system and CE certification.
n

6.Deliver,Shipping And Serving of the Ais Transponder Wifi

nWe Provide
n
n1. On-time delivery and the shortest delivery time.
n
n2. OEM and customized service.
n
n3. User manuals will go with relative machines.
n
n
n
nTechnical parameters:
n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

Model AIS9000 Transponder
Power Supply DC 24V (11~35V)
Power High-performance, full isolated, PWM control of power supply
Installation Desk or Hanging Installation
VHF Transceiver
Frequency Range 156.025 MHz ~ 162.025 MHz
Channel Bandwidth 25KHz
Modulation GMSK
Number of Transmitters 1
AIS Channel 1 CH 87B(161.975 MHz)
AIS Channel 2 CH 88B(162.025 MHz)
Tx Power Output 2 Watt (33 dBm ± 1.5 dB)
Rx Sensitivity < -107 dBm @ 20% PER
Rx Message AIS Class A & B messages
GPS Receiver(Built-in)
Receiving Channels 50 channels(Customizable GPS+Beidou)
Acquisition Time Cold start:45s,Hot start:15s
Accuracy <15m(95%)
LED Indication
Power(Red) System power on/off
Error(Yellow) Receiving or transmitting error
TX(Red) Transmitting AIS data
RX1(Green) Receiving AIS channel 1 data
RX2(Green) Receiving AIS channel 2 data
GPS(Green) Receiving GPS data
Interface
GPS Antenna Connector BNC
VHF Antenna Connector NS-KYA3
NMEA0183(RS-422) 1(38400bps)
Environment
工Temperature -15°C ~ +55°C (+5°F ~ +130°F)
Protection Level IP44
Applicable Standards IEC 62287-1 ED.22010 IEC 61108-1 ED.12003 IEC61162-1 ED.32007
n
nIEC 60945 ED.42002 IEC61162-2 ED.11998 ITU-RM.1371-42010
