$2,800.00
n
nThe SAIYANG AIS9000 Marine GPS Transponder is a professional Class B AIS device designed for accurate vessel tracking and collision avoidance. It integrates a high-sensitivity GPS receiver board (powered by OVA) with a built-in GPS antenna, making installation fast and easy-especially on fiberglass vessels.
n
nThe AIS9000 simultaneously transmits and receives AIS data, including vessel position, speed, course, and MMSI. Connect it to any modern chartplotter or PC via the industry-standard NMEA0183 interface to view nearby AIS-equipped vessels in real time.
n
n✅ Built-in high-sensitivity GPS – precise positioning without an external GPS antenna
n
n✅ NMEA0183 interface – compatible with most chartplotters and marine electronics
n
n✅ Optional built-in WiFi – stream AIS targets to iPad, iPhone, Android tablets, or smartphones
n
n✅ Easy installation on GRP vessels – internal antenna works perfectly on fiberglass boats
n
n✅ ISO9001 certified factory – rigorous quality control
n
n
nMany customers ask: “Can I see AIS targets on my iPad or Android phone while on deck?”
n
nYes. If you select the WiFi-enabled version of the AIS9000, you can:
n
nView AIS targets on your mobile device
n
nReceive collision alarms remotely
n
nUse any nautical app that supports NMEA over WiFi
n
nPerfect for sailors and captains who want flexibility beyond a fixed chartplotter.
n
nQ: Where is SAIYANG located? Can I visit?
nA: Our factory is in Nantong, China – about 2 hours from Shanghai, and only 30 minutes from Nantong Airport. Visits are welcome.
n
nQ: Can I get a sample?
nA: Yes. Samples ship within 3-5 days if in stock. (Sample cost applies, not free.)
n
nQ: What is your lead time?
nA:
n
nIn-stock items: 3-5 working days after 100% payment
n
nOut of stock: approximately 30-35 days
n
nQ: How do you control quality?
nA: We are ISO9001 certified with an independent quality control team and in-factory inspectors.
n
nQ: What is the MOQ?
nA: Normal order: 10 pieces per item. Sample orders accepted.
n
nQ: How is shipping handled?
nA:
n
nSmall orders → by air
n
nLarge orders → by sea (via Shanghai or Nantong Port)
n
nWe work with your freight forwarder or ours
n
nQ: Do you have distributors or agents?
nA: Yes. Policies vary by market. Please email us to discuss terms.
n
nais marine gps transponder, AIS9000, built-in GPS AIS transponder, marine AIS with WiFi, NMEA0183 AIS, ship collision avoidance system, SAIYANG marine, GRP vessel AIS
n
n
n
n
n
nReady to equip your vessel with the AIS9000?
nContact our sales team for wholesale pricing, sample requests, or technical specifications.
n
n [saiyang@ova.com.cn]
n
n
n
n
n
nTechnical parameters：
n
| Model | AIS9000 Transponder |
| Power Supply | DC 24V (11~35V) |
| Power | High-performance, full isolated, PWM control of power supply |
| Installation | Desk or Hanging Installation |
| VHF Transceiver | |
| Frequency Range | 156.025 MHz ~ 162.025 MHz |
| Channel Bandwidth | 25KHz |
| Modulation | GMSK |
| Number of Transmitters | 1 |
| AIS Channel 1 | CH 87B(161.975 MHz) |
| AIS Channel 2 | CH 88B(162.025 MHz) |
| Tx Power Output | 2 Watt (33 dBm ± 1.5 dB) |
| Rx Sensitivity | < -107 dBm @ 20% PER |
| Rx Message | AIS Class A & B messages |
| GPS Receiver(Built-in) | |
| Receiving Channels | 50 channels(Customizable GPS+Beidou) |
| Acquisition Time | Cold start：45s,Hot start：15s |
| Accuracy | <15m(95%) |

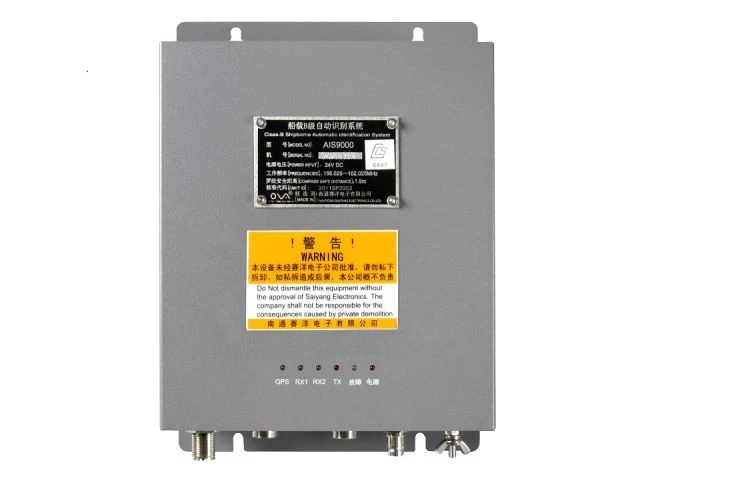

| LED Indication | |
| Power(Red) | System power on/off |
| Error(Yellow) | Receiving or transmitting error |
| TX(Red) | Transmitting AIS data |
| RX1(Green) | Receiving AIS channel 1 data |
| RX2(Green) | Receiving AIS channel 2 data |
| GPS(Green) | Receiving GPS data |

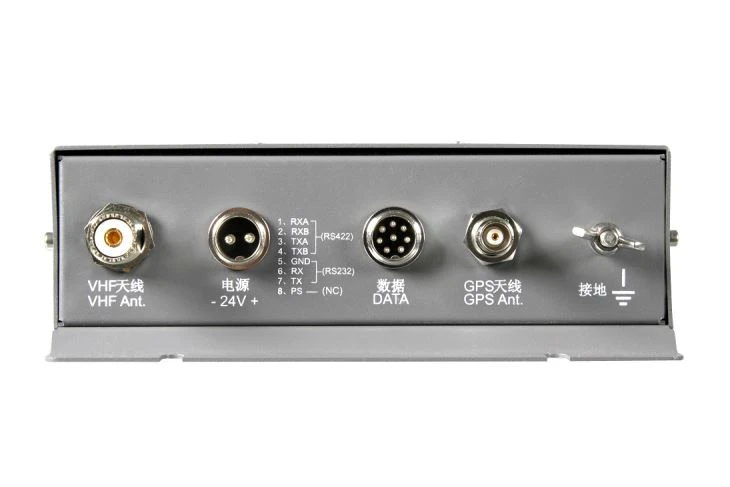

| Interface | |
| GPS Antenna Connector | BNC |
| VHF Antenna Connector | NS-KYA3 |
| NMEA0183(RS-422) | 1(38400bps) |
| Environment | |
| 工Temperature | -15°C ~ +55°C (+5°F ~ +130°F) |
| Protection Level | IP44 |
| Applicable Standards | IEC 62287-1 ED.22010 IEC 61108-1 ED.12003 IEC61162-1 ED.32007 n nIEC 60945 ED.42002 IEC61162-2 ED.11998 ITU-RM.1371-42010 |
